Debra ER202 Audio UHF Wireless In-ear Monitoring System With Bluetooth 5.0 For Stage Band Ensemble Monitor Headphones

Debra Audio UHF Dual Channel In Ear Monitor System With Monitoring Type for Stage Recording Studio Monitoring

The PRO UHF Wireless In Ear Monitoring System: D Debra Audio’s new UHF system with phase-locked loop PLL. It using high-quality IC chips, improves the overall performance, anti-frequency reduction, anti-series frequency, has a stronger and more stable signal, Better signal to noise ratio. Frequency range: 510 MHz-580 Mhz. The preset 100 frequencies for each channel can be switched at will, which can better avoid signal interference.

Suitable For Multiple Places: Built-in Limiter circuitry eliminating distortion under excessive input levels. Front panel 1/4-inch stereo monitoring has the headphone jack. Back panel have 6.35 dual-channel mixed input and single-channel independent integrated interface input. Good used in stage, broadcast, recoding studio, band performance.

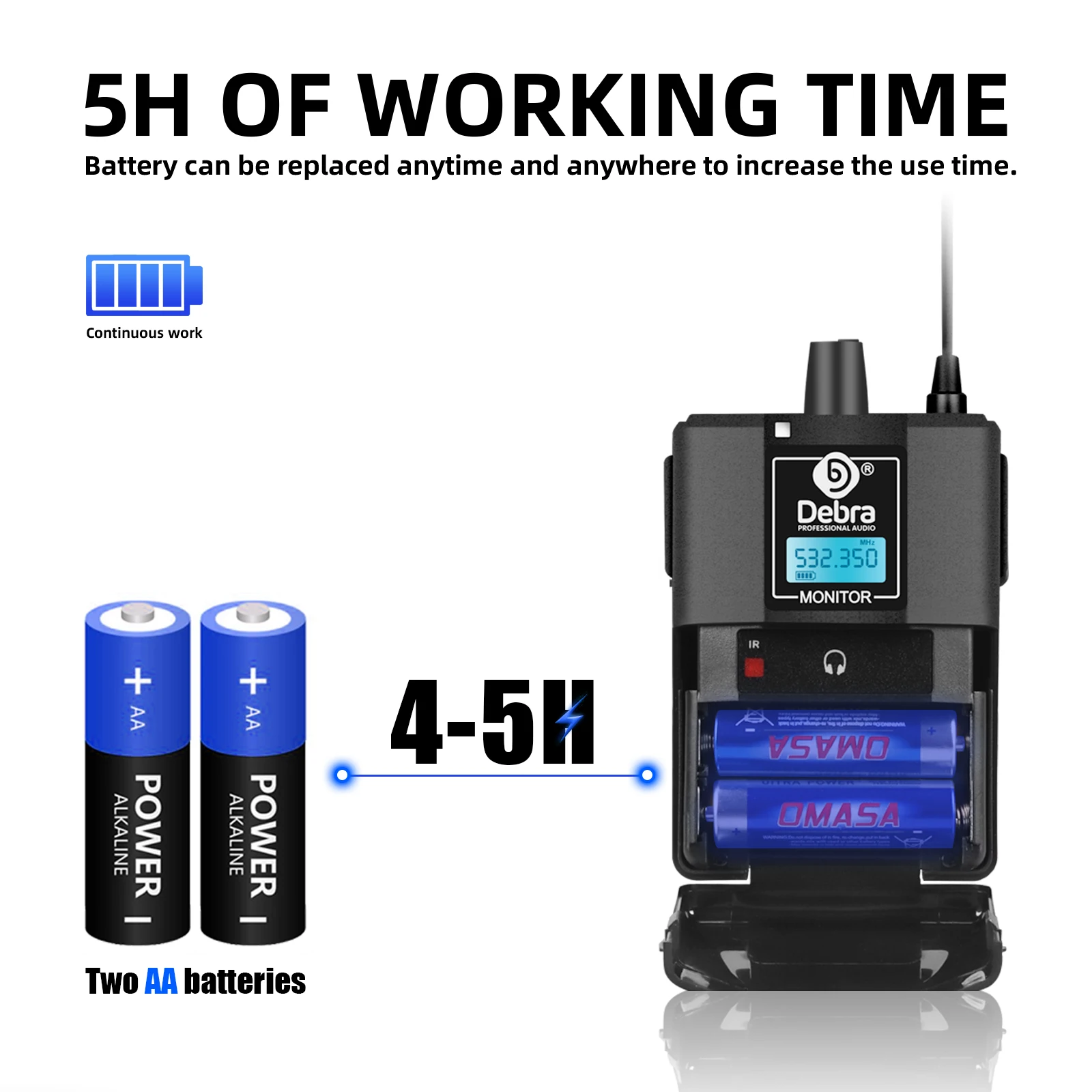

Feature Design: The transmitter has LCD display panel, RF and AF display. The receiver is equipped with LCD display, power supply and RF receiving indicator. The panel can monitor battery power.

More Stable Signal, Longer Effective Distance: On an unobstructed open stage, the effective distance can reach 800 feet. The best range is within 500-600 feet. The good the signal-to-noise ratio of the dynamic range, the good anti-interference and the perfect original sound reproduction.

High-quality Technical Process: The advanced circuit design, high quality IC chip , clear most the receiving blind angle to make the system’s receiving signal steady.It is the best choice of stage performance stage, broadcast, recoding studio, band performance monitor product.Our promise 30 days return without any reason，3 years warranty policy。

Specification:
Modulation Method:π/4-DQPSK
Frequency Range: 530.10-579.85 MHz,2×100 Selectable frequency point
Sampling Ratio:48KHz
Transmission Rate:204.8Kbps
Dynamic Range:＞90dB
Total Harmonic Distortion:＜0.1%
Delay Time of Audio Transmission:＜3ms
S/N Ratio:＞96dB
Frequency Response:30～20Khz
RX Sensitivity:＜-94dBm
Unique ID Address: YES

Package Include(Whole system):
Transmitter × 1
Bodypack receiver(with earphone) × 2/4/10
Antenna × 2
Cable Line × 2
Power Adapter × 1
User Manual × 1
